Add observability and security to an Azure Kubernetes Service (AKS) instance using OpenTelemetry and Elastic.

The purpose of this recipe is to add observability and security to an AKS instance using OpenTelemetry and Elastic. * References * Notes * Setup


References

If I find any helpful references, I will put them here. * OpenTelemetry: Collector | Configuration * Elastic: Modern observability and security on Kubernetes with Elastic and OpenTelemetry * Elastic: Add a Fleet Server * Elastic: Run Elastic Agent Standalone on Kubernetes * Elastic APM Server Helm Chart: values.yaml example * OpenTelemetry TLS Configuration Settings * Azure: Configure a federated identity credential on an app * Azure: Configure a GitHub Action to create a container instance * Elastic Integration * Switch to the Elastic APM integration * Fleet-Managed APM Server

Notes

If there are any additional notes, I will put them here.

Elastic Integrations
In order to add Integrations to Elastic Agent, reference the URLs here: https://docs.elastic.co/integrations/. For example, the name of the Package Name for APM is apm because the URL for the integration looks like this https://docs.elastic.co/integrations/apm. Meanwhile, the Package Name for Fleet Server is fleet_server because the URL for this integration is https://docs.elastic.co/integrations/fleet_server.

  config:
    xpack.fleet.agents.elasticsearch.hosts: ["https://elasticsearch-es-http.default.svc:9200"]
    xpack.fleet.agents.fleet_server.hosts: ["https://fleet-server-agent-http.default.svc:8220"]
    xpack.fleet.packages:
    - name: system
      version: latest
    - name: elastic_agent
      version: latest
    - name: fleet_server
      version: latest
    - name: kubernetes
      version: latest
    - name: apm
      version: latest
    - name: endpoint
      version: latest
    xpack.fleet.agentPolicies:
    - name: Fleet Server Policy
      id: fleet-server
      namespace: default
      monitoring_enabled:
      - logs
      - metrics
      unenroll_timeout: 900
      package_policies:
      - name: fleet_server-1
        id: fleet_server-1
        package:
          name: fleet_server
    - name: Elastic Agent Policy
      id: elastic-agent
      namespace: default
      monitoring_enabled:
      - logs
      - metrics
      unenroll_timeout: 900
      package_policies:
      - name: system-1
        package:
          name: system
      - name: kubernetes-1
        package:
          name: kubernetes
      - name: apm-1
        package:
          name: apm

Setup

This recipe assumes (1) you're using a Linux-based environment (GitHub Codespaces, Azure Shell, Windows Subsystem for Linux, etc.), (2) you've installed the software required for this recipe (i.e., Python, Docker, Kubernetes, Helm, and Azure CLI), (3) you've forked this repository, (4) you've downloaded this repository, and (5) you're running commands from the recipe-10/ folder.

Step 1. Define environment variables for your infrastructure. I usually save my environment variables in a file called something like .env and run source .env as needed. This makes it easy to pick up where I left off after leaving my workspace for an extended period of time. If you didn't know, the source command reads and executes shell commands from the file you provide it.

export APP_NAME="squidfall"
export SUBSCRIPTION_ID="c60c349f-4b5c-4e39-98cb-4fc2323804c5"
export LOCATION="eastus"
export RESOURCE_GROUP_NAME="${APP_NAME}"

Step 2. Login to Azure using the CLI.

az login --use-device-code

Step 3. Set your subscription.

az account set --subscription "${SUBSCRIPTION_ID}"

Step 4. Create a virtual environment to house the scripts/init_azure.py script's Python dependencies.

python -m venv .venv

Step 5. Activate the scripts/init_azure.py script's Python virtual environment.

source .venv/bin/activate

Step 6. Install the scripts/init_azure.py script's Python dependencies.

python -m pip install -r scripts/requirements.txt

Step 7. Run the scripts/init_azure.py script.

python scripts/init_azure.py --app-name "${APP_NAME}" --subscription-id "${SUBSCRIPTION_ID}" --location "${LOCATION}"

You should get output similar to below.

[*] Created Terraform state resource group
[*] Created Terraform state storage account
[*] Created Terraform state blob container
[!] Copy and paste the commands below into your shell environment:

terraform -chdir=terraform init -backend-config="storage_account_name=squidfallc60c349f4b5c666" -backend-config="access_key=hhJpx3xDkS8ciDBbwvn9150vLU5UO3FMVzTS0PQzKMar8SOz/0iQuKcdvuX1TNw+2WsCmtc2yhPV+AStIPW666=="
terraform -chdir=terraform apply

Step 8. Copy and paste the commands printed by the previous step (enter yes when prompted). You should get output similar to below. It creates the following resources: resource group, container registry, Kubernetes cluster, and role assignment.

Apply complete! Resources: 4 added, 0 changed, 0 destroyed.

Outputs:

ACR_NAME = "squidfall"
AKS_NAME = "squidfall"

Step 9. Copy and paste the commands below to your terminal session to declare and initialize the remaining environment variables needed.

export ACR_NAME=$(terraform -chdir=terraform output -raw ACR_NAME)
export AKS_NAME=$(terraform -chdir=terraform output -raw AKS_NAME)

Step 10. Download credentials from your AKS instance for kubectl to use.

az aks get-credentials --resource-group "${RESOURCE_GROUP_NAME}" --name "${AKS_NAME}"

Task 01: Deploy the Elastic Stack

Step 1. Install Elastic's Custom Resource Definitions (CRDs).

kubectl create -f https://download.elastic.co/downloads/eck/2.12.1/crds.yaml

You should get output similar to below.

customresourcedefinition.apiextensions.k8s.io/agents.agent.k8s.elastic.co created
customresourcedefinition.apiextensions.k8s.io/apmservers.apm.k8s.elastic.co created
customresourcedefinition.apiextensions.k8s.io/beats.beat.k8s.elastic.co created
customresourcedefinition.apiextensions.k8s.io/elasticmapsservers.maps.k8s.elastic.co created
customresourcedefinition.apiextensions.k8s.io/elasticsearchautoscalers.autoscaling.k8s.elastic.co created
customresourcedefinition.apiextensions.k8s.io/elasticsearches.elasticsearch.k8s.elastic.co created
customresourcedefinition.apiextensions.k8s.io/enterprisesearches.enterprisesearch.k8s.elastic.co created
customresourcedefinition.apiextensions.k8s.io/kibanas.kibana.k8s.elastic.co created
customresourcedefinition.apiextensions.k8s.io/logstashes.logstash.k8s.elastic.co created
customresourcedefinition.apiextensions.k8s.io/stackconfigpolicies.stackconfigpolicy.k8s.elastic.co created

Step 2. Install the Elastic Operator.

kubectl apply -f https://download.elastic.co/downloads/eck/2.12.1/operator.yaml

You should get output similar to below.

namespace/elastic-system created
serviceaccount/elastic-operator created
secret/elastic-webhook-server-cert created
configmap/elastic-operator created
clusterrole.rbac.authorization.k8s.io/elastic-operator created
clusterrole.rbac.authorization.k8s.io/elastic-operator-view created
clusterrole.rbac.authorization.k8s.io/elastic-operator-edit created
clusterrolebinding.rbac.authorization.k8s.io/elastic-operator created
service/elastic-webhook-server created
statefulset.apps/elastic-operator created
validatingwebhookconfiguration.admissionregistration.k8s.io/elastic-webhook.k8s.elastic.co created

Step 3. Apply the provided Kubernetes manifest.

kubectl apply -f kubernetes/elastic.yaml

Step 4. Expose the Kibana service by deploying a Load Balancer service to route traffic to it. The command sentence below creates a Load Balancer service called siem. SIEM is an acronym for Security Incident and Event Manager.

kubectl expose svc kibana-kb-http --type=LoadBalancer --name siem

Step 5. Get the external IP address of the siem service.

kubectl get svc/siem

You should get output similar to below.

NAME   TYPE           CLUSTER-IP   EXTERNAL-IP      PORT(S)          AGE
siem   LoadBalancer   10.0.19.99   48.216.128.246   5601:32236/TCP   11s

Step 6. Get the password for the elastic account.

kubectl get secrets elasticsearch-es-elastic-user -ojsonpath="{.data.elastic}" | base64 -d && echo ""

Step 7. Open a browser and go to TCP port 5601 on the external IP address of the siem service (e.g., https://48.216.128.246). Then, login. For the username field, enter elastic. For the password field, use the one you printed to the console in the previous step.

Step 8. Text goes here.

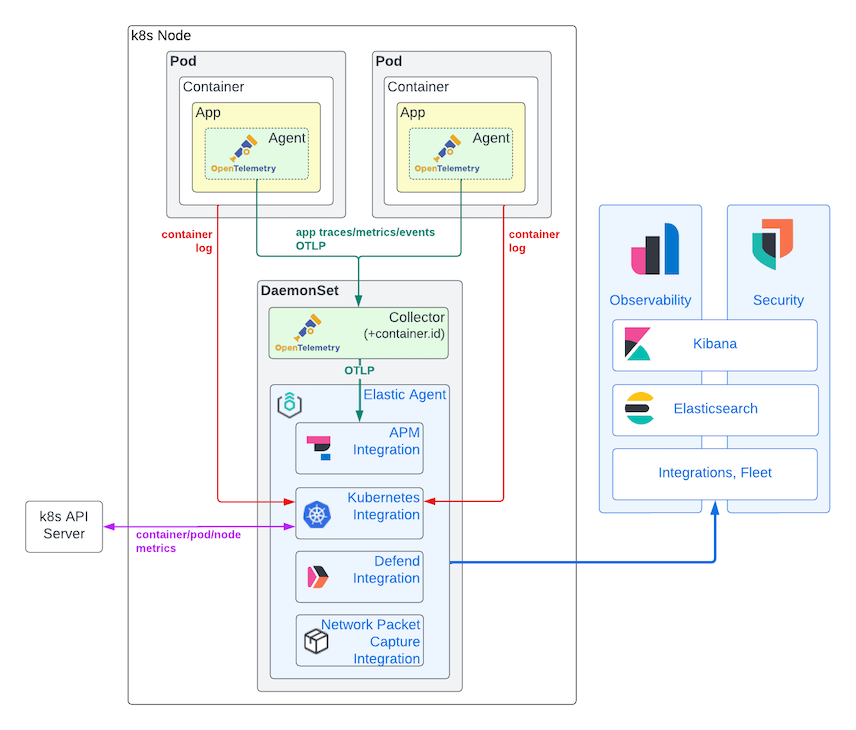

flowchart TD
  subgraph Node
    subgraph Service
      OTELAgent["OTEL Agent"]
    end
    subgraph OTELCollector["OTEL Collector"]
      OTELExporter["OTEL Exporter"]
    end
    subgraph ElasticAgent
      APMIntegration["Elastic APM Integration"]
      DefendIntegration["Elastic Defend Integration"]
    end
    Elasticsearch
  end
  OTELAgent --> OTELCollector --> APMIntegration --> Elasticsearch

Task 02: Deploy OpenTelemetry

Step 1. Add Custom Resource Definitions (CRDs) to your cluster for the following object types: Certificate and Issuer. The OpenTelemetry Operator needs them both.

kubectl apply -f https://github.com/cert-manager/cert-manager/releases/download/v1.14.4/cert-manager.yaml

Step 2. Wait for the CRDs to take affect, then deploy an OpenTelemetry Operator to the opentelemetry-operator-system namespace in your cluster.

kubectl apply -f https://github.com/open-telemetry/opentelemetry-operator/releases/latest/download/opentelemetry-operator.yaml

Step 3. Confirm your OpenTelemetry Operator is running by checking the status of the pods created in the previous step.

kubectl get pods -n opentelemetry-operator-system

Step 4. Apply the Kubernetes manifest file called otel-collector.yaml. It creates a OpenTelemetry Collector and OpenTelemetry Instrumentation deployment.

kubectl apply -f kubernetes/otel-collector.yaml

Step 5. Confirm your OpenTelemetry Collector deployment is running by checking the status of the pods created in the previous step. You should probably also check the logs of each pod too.

kubectl get pods

Step 6. Confirm your OpenTelemetry Instrumentation workload is working by checking the status of the pods created in the previous step. This step is also important for checking and/or checking the endpoint of your OTEL collector.

kubectl get instrumentation

Task 03: Deploy Your App

Step 1. Login to your ACR.

az acr login --name "${ACR_NAME}"

Step 2. Build, tag, and push a container image to your ACR. Specifying --platform linux/amd64 forces your local Docker host to build an image using the same CPU architecture as the Docker hosts that will be used in Azure. Also, the command sentence below references a Dockerfile and FastAPI-application in the folder of this recipe, feel free to use whatever image you want. Just make sure it's been instrumented to use OpenTelemetry.

docker build --push --tag ${ACR_NAME}.azurecr.io/${APP_NAME}:v1.0.0 --platform linux/amd64 -f docker/Dockerfile src/

Step 3. Deploy your app using the provided Kubernetes manifest file. It creates two deployments (staging and production) and one Load Balancer service. Both deployments have an annotation the OpenTelemetry Collector uses to decide whether or not to inject telemetry functions.

kubectl apply -f kubernetes/service.yaml

Step 4. If you make changes to your app and need to execute a "Blue-Green deployment strategy," use the command below. It specifically configures the load balancer for the service in question to route traffic to the production deployment (i.e., the green environment).

kubectl set selector svc/${APP_NAME} app=${APP_NAME},env=production

Validation

In order to confirm I was getting logs, I did the step below.

Step 1. Submitted a HTTP request to my app.

curl http://4.246.250.101/

Step 2. Checked my's app pod logs.

kubectl logs pods/squidfall-staging-778d964f9b-lhr4p

Below is an example of what it logged.

Defaulted container "squidfall" out of: squidfall, opentelemetry-auto-instrumentation-python (init)
Attempting to instrument FastAPI app while already instrumented
INFO:     Started server process [1]
INFO:     Waiting for application startup.
INFO:     Application startup complete.
INFO:     Uvicorn running on http://0.0.0.0:8080 (Press CTRL+C to quit)
INFO:     10.244.2.1:52944 - "GET /healthcheck HTTP/1.1" 200 OK
INFO:     10.224.0.7:8999 - "GET / HTTP/1.1" 200 OK
INFO:     10.224.0.7:8999 - "GET /favicon.ico HTTP/1.1" 404 Not Found

Step 3. Checked the OpenTelemetry Collector pod's logs.

kubectl logs pods/otel-collector-5fd7b4b889-czrfk

Below is an example of what it logged.

ScopeSpans #0
ScopeSpans SchemaURL:
InstrumentationScope opentelemetry.instrumentation.asgi 0.44b0
Span #0
    Trace ID       : f32b80d48bce3438e150a0d54effc6b6
    Parent ID      : 4487416eedd61a1d
    ID             : b4d3f11a8dcb0272
    Name           : GET / http send
    Kind           : Internal
    Start time     : 2024-04-28 16:19:31.429795502 +0000 UTC
    End time       : 2024-04-28 16:19:31.430269008 +0000 UTC
    Status code    : Unset
    Status message :
Attributes:
     -> http.status_code: Int(200)
     -> type: Str(http.response.start)
Span #1
    Trace ID       : f32b80d48bce3438e150a0d54effc6b6
    Parent ID      : 4487416eedd61a1d
    ID             : 6b3d2fa7a6929123
    Name           : GET / http send
    Kind           : Internal
    Start time     : 2024-04-28 16:19:31.430360009 +0000 UTC
    End time       : 2024-04-28 16:19:31.430523011 +0000 UTC
    Status code    : Unset
    Status message :
Attributes:
     -> type: Str(http.response.body)
Span #2
    Trace ID       : f32b80d48bce3438e150a0d54effc6b6
    Parent ID      :
    ID             : 4487416eedd61a1d
    Name           : GET /
    Kind           : Server
    Start time     : 2024-04-28 16:19:31.428490688 +0000 UTC
    End time       : 2024-04-28 16:19:31.430538511 +0000 UTC
    Status code    : Unset
    Status message :
Attributes:
     -> http.scheme: Str(http)
     -> http.host: Str(10.244.2.8:8080)
     -> net.host.port: Int(8080)
     -> http.flavor: Str(1.1)
     -> http.target: Str(/)
     -> http.url: Str(http://10.244.2.8:8080/)
     -> http.method: Str(GET)
     -> http.server_name: Str(4.246.250.101)
     -> http.user_agent: Str(Mozilla/5.0 (Macintosh; Intel Mac OS X 10_15_7) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/124.0.0.0 Safari/537.36)
     -> net.peer.ip: Str(10.224.0.7)
     -> net.peer.port: Int(65024)
     -> http.route: Str(/)
     -> api.response: Str(hi non sunt droids quam quaeritis)
     -> http.status_code: Int(200)
        {"kind": "exporter", "data_type": "traces", "name": "debug"}

Step 4. Checked the APM Server pod's logs.

kubectl logs pods/apm-server-apm-server-5b7db699bc-ccfbx

Below is an example of what it logged.

{"log.level":"info","@timestamp":"2024-04-28T16:22:13.182Z","log.logger":"request","log.origin":{"file.name":"middleware/log_middleware.go","file.line":61},"message":"request ok","service.name":"apm-server","url.original":"/","http.request.method":"GET","user_agent.original":"kube-probe/1.28","source.address":"10.244.2.1","http.request.body.bytes":0,"http.request.id":"2f605867-f372-41d1-9014-f4357aa535d2","event.duration":48201,"http.response.status_code":200,"ecs.version":"1.6.0"}
{"log.level":"info","@timestamp":"2024-04-28T16:22:20.093Z","log.logger":"beater.grpc","log.origin":{"file.name":"interceptors/logging.go","file.line":65},"message":"request accepted","service.name":"apm-server","source.address":"10.244.2.7:38170","grpc.request.method":"/opentelemetry.proto.collector.trace.v1.TraceService/Export","event.duration":403705,"grpc.response.status_code":"OK","ecs.version":"1.6.0"}
{"log.level":"info","@timestamp":"2024-04-28T16:22:23.181Z","log.logger":"request","log.origin":{"file.name":"middleware/log_middleware.go","file.line":61},"message":"request ok","service.name":"apm-server","url.original":"/","http.request.method":"GET","user_agent.original":"kube-probe/1.28","source.address":"10.244.2.1","http.request.body.bytes":0,"http.request.id":"5af441f1-7989-4f33-8350-9a565f1d83c4","event.duration":97701,"http.response.status_code":200,"ecs.version":"1.6.0"}
{"log.level":"info","@timestamp":"2024-04-28T16:22:23.182Z","log.logger":"request","log.origin":{"file.name":"middleware/log_middleware.go","file.line":61},"message":"request ok","service.name":"apm-server","url.original":"/","http.request.method":"GET","user_agent.original":"kube-probe/1.28","source.address":"10.244.2.1","http.request.body.bytes":0,"http.request.id":"46d17fc7-d341-4ff6-bfa4-9bba3fe0256a","event.duration":73701,"http.response.status_code":200,"ecs.version":"1.6.0"}
{"log.level":"info","@timestamp":"2024-04-28T16:22:30.184Z","log.logger":"beater.grpc","log.origin":{"file.name":"interceptors/logging.go","file.line":65},"message":"request accepted","service.name":"apm-server","source.address":"10.244.2.7:38166","grpc.request.method":"/opentelemetry.proto.collector.metrics.v1.MetricsService/Export","event.duration":2476636,"grpc.response.status_code":"OK","ecs.version":"1.6.0"}
{"log.level":"info","@timestamp":"2024-04-28T16:22:33.182Z","log.logger":"request","log.origin":{"file.name":"middleware/log_middleware.go","file.line":61},"message":"request ok","service.name":"apm-server","url.original":"/","http.request.method":"GET","user_agent.original":"kube-probe/1.28","source.address":"10.244.2.1","http.request.body.bytes":0,"http.request.id":"9c7adb21-f5a2-4c71-9b48-b5aaf2304625","event.duration":95501,"http.response.status_code":200,"ecs.version":"1.6.0"}
{"log.level":"info","@timestamp":"2024-04-28T16:22:33.182Z","log.logger":"request","log.origin":{"file.name":"middleware/log_middleware.go","file.line":61},"message":"request ok","service.name":"apm-server","url.original":"/","http.request.method":"GET","user_agent.original":"kube-probe/1.28","source.address":"10.244.2.1","http.request.body.bytes":0,"http.request.id":"aacac5cb-6a2c-407f-a9a6-d00785904048","event.duration":78601,"http.response.status_code":200,"ecs.version":"1.6.0"}

Step 4. Checked the "Observability | APM | Services" page in Kibana.

Step 5. Checked the "APM" data view on the "Analytics | Discover" page in Kibana.
